Product introduction

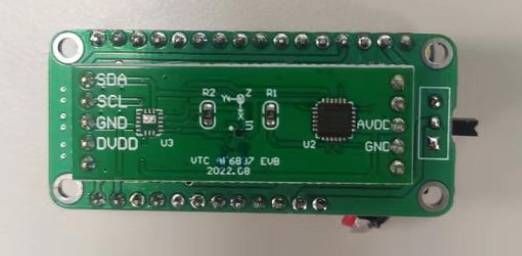

IMU solution
- The IMU solution provided by Yuneng Electric is composed of Yuneng Electric's magnetic sensor (AMR), combined with a gyroscope and accelerometer. It has superior characteristics such as high accuracy, high ODR and high temperature stability.
- The products can provide customized services for various applications. The products can also be used with MCUs, and we can discuss and develop algorithms with customers to meet their various application needs.
- Market applications: TWS, AR/VR/XR, Robot, Automotive, MetaVerse
AF6837L
- The geomagnetic sensors provided by Yuneng Electric are designed and manufactured using anisotropic magnetoresistive technology (AMR). Compared with Hall components, it has the advantages of high sensitivity, low noise and low power consumption. Based on this technology, Yuneng electromagnetic sensors can detect azimuth angles with high accuracy.
- AF6837L Key Features and Specifications
- Low power consumption, high sensitivity, low noise, extremely low hysteresis curve.
- High data output rate (ODR (≧400Hz).
- Magnetic field range ±3000 μT.
- Supports I2C and MIPI I3C basic 1.0 interfaces.
- Market applications: TWS, AR/VR/XR, Wearable, Smart Parking Lot
| Product model | Dimensions (mm3) | Supply voltage(V) | communication interface | I/O voltage (V) | Package type | ODR(Hz) | Specifications |
|---|---|---|---|---|---|---|---|
| AF6837L | 0.8*0.8*0.5 | 1.65~1.95 | I3C / I2C | 1.2 / 1.8 | WLCSP- 4pin | 400 (Up to 600) | Contact VTC |
AF6935
- The AF6935 three-axis magnetic sensor uses Yuneng Electronic Technology’s proprietary anisotropic magnetoresistance (AMR) technology, which has excellent anti-magnetic interference capabilities, high sensitivity, low noise, extremely low hysteresis curve and extremely low temperature characteristic drift. and other characteristics, and is designed with high data output rate, suitable for use in various types of drones.
- AF6935 Key Features and Specifications
- Excellent anti-magnetic interference ability
- High data output rate (Max. ODR: 300Hz).
- Extremely low temperature characteristic drift.
- High sensitivity, low noise, extremely low hysteresis curve.
- Market Application: Drone
| Product model | Dimensions (mm3) | Supply voltage(V) | communication interface | I/O voltage (V) | Package type | ODR(Hz) | Specifications |
|---|---|---|---|---|---|---|---|
| AF6935 | 2.0*2.0*1.0 | 1.7~1.9 | I3C / I2C | 1.8 | WLCSP | 300 | Contact VTC |
F6838 low power application
- The AF6838 low-power product provided by Yuneng Electric provides high-quality motion sensing solutions for drones, industrial grade, AR/VR/XR, AIoT, wearable smart motion solutions and MetaVerse applications, covering all dynamics , static and quasi-static motion states, with precise motion control and trajectory.
- AF6838 Key Features and Specifications
- Supply voltage 3.3V/1.8V
- Low power consumption (≦30uA@10Hz).
- Quick calibration. (hardware built-in algorithm).
- Anti-interference.
- High data output rate.
- Market applications: Drone, Industrial, Wearable, AR/VR/XR, AIoT
| Product model | Dimensions (mm3) | Supply voltage(V) | communication interface | I/O voltage (V) | Package type | Specifications |
|---|---|---|---|---|---|---|
| AF6838 | 0.8*0.8*0.5 | 2.5 - 3.6 | I3C / I2C | 3.3 | WLCSP- 4pin | Contact VTC |
