Product application

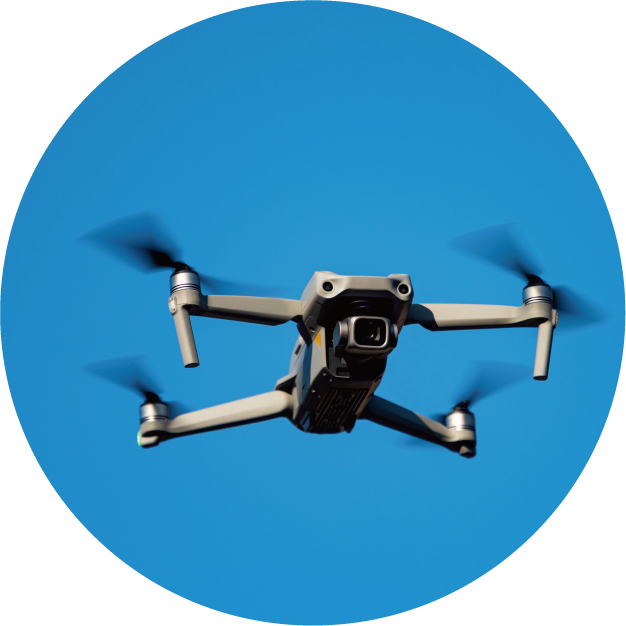

Application of geomagnetic sensors in drones

UAV flight requires an Attitude and Heading Reference System (AHRS). The accelerometer and gyroscope can estimate the roll and pitch of the aircraft. However, yaw cannot be accurately obtained through these two, so a geomagnetic sensor is required. The geomagnetic sensor mainly calculates the angle between the aircraft and magnetic north based on the geomagnetic vector.

Industrial-grade drones can be used in a wide range of fields, including scientific research (climate, topography, ecology, minerals), environmental monitoring, infrastructure inspections, disaster relief and epidemic prevention (mountain disasters, shipwrecks, air crash searches, spraying disinfectants, and mass gatherings) warning), agriculture, forestry, fishery and animal husbandry management (spraying pesticides, field or orchard inspections), spatial information measurement, media communication, telecommunications services, logistics home delivery, entertainment activities, etc.

When the drone is flying, it has high requirements for the accuracy of the heading and orientation, so it has high requirements for noise. The motor on the machine body is easily close to high-voltage wires in the environment when rotating and flying, which is the main source of magnetic interference. Therefore, the requirements for tolerance to magnetic field interference and data output rate are relatively high to reduce the impact of such interference.

VTC's geomagnetic sensors provide excellent anti-interference capabilities, high output rate, more accurate resolution and high temperature stability, providing customers with more optimized product solutions.

• Yunengdian provides high-quality motion sensing solutions, covering all dynamic, static, quasi-static and transitional motion modes, with precise motion control and trajectory, suitable for intelligent motion sensing in AIoT and Metaverse applications.

• Yuneng Electric can work with customers to develop specific motion sensing solutions. Yunengdian provides calibration algorithms, azimuth angle calculation, attitude detection, accurate trajectory and trajectory tracking.

• Yuneng Electric provides high-performance magnetic sensors with excellent anti-interference ability, high sensitivity and ease of use. Provide customers with the ability to quickly use magnetic sensors for application development.

Current sensing technology is used in a wide range of electronic systems such as over-current protection and monitoring circuits, battery life chargers and indicators, voltage and current regulators, ground fault detectors, AC/DC converters, communications equipment, switch mode and Linear power supplies, overload protection and motor speed control, etc.

• consumer electronics
• telecommunications

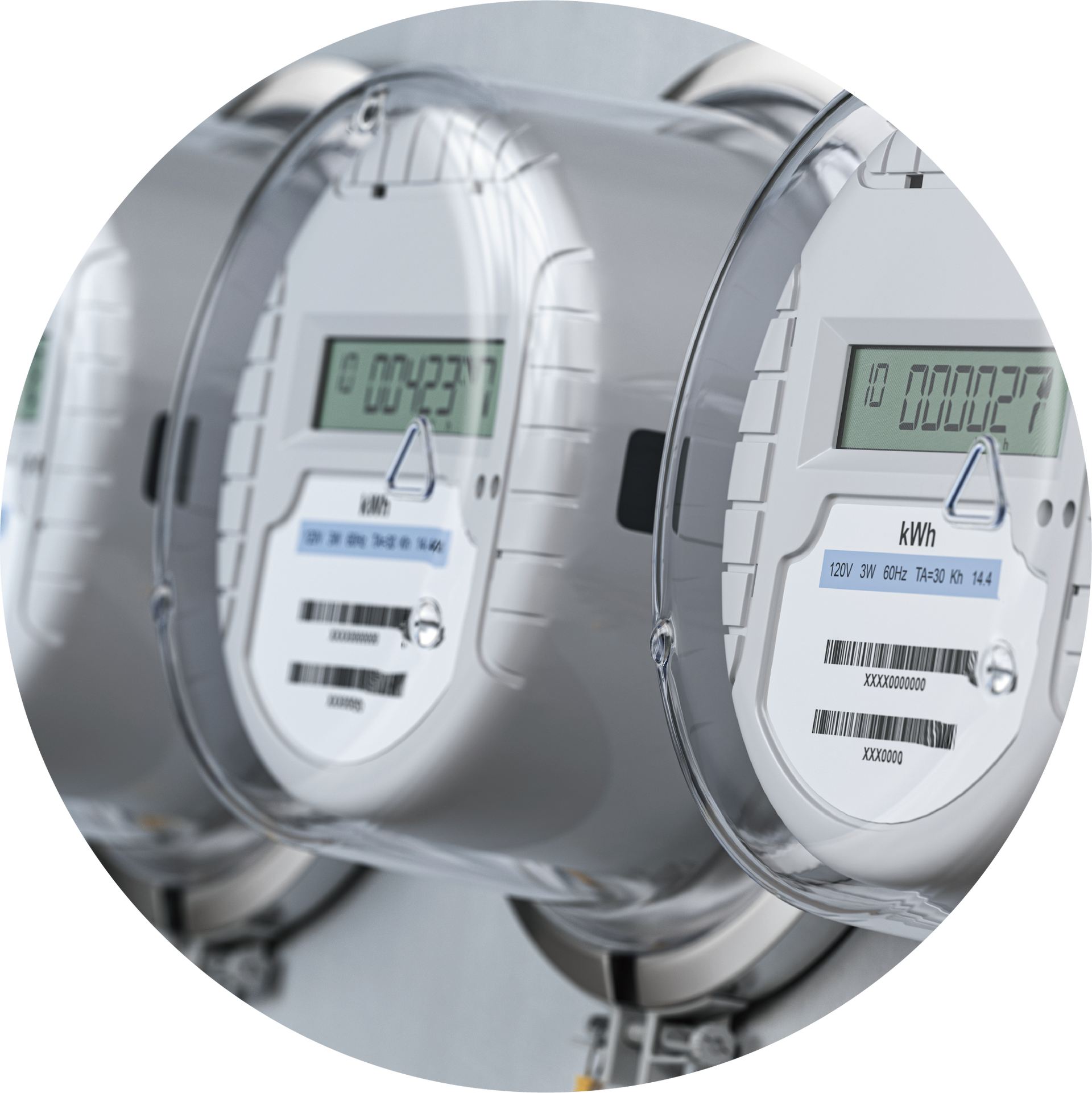

• smart meter
• home automation
• Smart City
• Green energy management system
• IoT and Industrial IoT
• Industrial Automation
• car
• Health and Medical

VTC offers AMR-based current sensors with high accuracy, high bandwidth, low temperature drift and large measurement range that compete with traditional current sensors.
